EOS Touch 3 Digital Sauna Control Unit, 7" Screen
The sleek and contemporary EOS Touch 3 is an exclusive touchscreen sauna control with intuitive multi-cabin functionality for effortless operation of private and commercial sauna rooms.
Power Box sold separately
With its precise capacitive touchscreen and intuitive user interface, the EOS Touch 3 provides fast, simple and easy access to all connected sauna cabins and their functions.

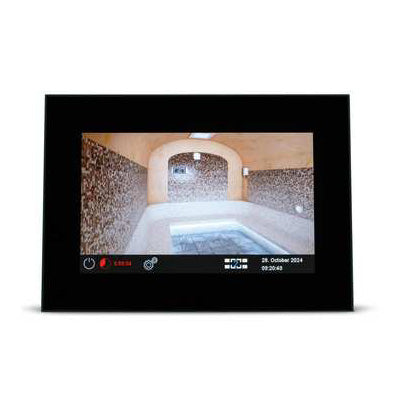

Sauna enthusiasts are greeted with a premium 7-inch full-color touchscreen display with flush-mount installation for a modern appearance. A straighforward guided setup allows navigation to be tailored to your preferences though the sleek, configurable graphic interface.

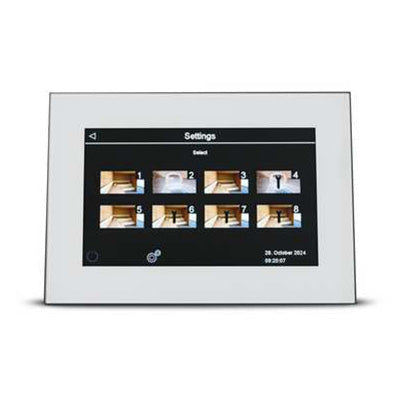

Perfect for upscale homes or commercial sauna facilities, the EOS Touch 3 is in a league of its own with the ability to control up to 8 sauna cabins through a single display (using extensions). Control the rooms in unison or individually, with precise temperature adjustment up to 194°F for optimal sauna enjoyment.
Designed for reliable long-term performance, the Touch 3 hosts many convenient user features. The control is future-safe with firmware updates that can be carried out on-site through the system interface. If a reset is ever carried out during maintenance, the system backup and restoration settings save previously created user preferences. A digital sensor system is implemented with a safety temperature limiter, preventing overheating while wellness seekers relax and rejuvenate.
Supported by a 2-year warranty, the EOS Touch 3 sauna control offers refined, universal control with dependable performance bringing sauna cabins to a new level of comfort.
Features
- Exclusive rimless glass display with 7-inch capacitive color touchscreen for a modern flush-mount design.
- Multi-cabin control (with extensions) for up to 8 sauna rooms operating all sauna functions in unison or individually.
- Digital temperature adjustment ranging from 85° - 194° F (30 - 90°C)
- Interactive user interface with stylish icons and clear text for easy navigation supporting 20 different languages.
- Additional outputs available for control of third-party equipment such as lighting, ventilation fans and vaporizers for full cabin operation.
- Optional pin code protection for added security while servicing and fine-tuning control settings.
- Firmware can be updated on site through menu settings for long-lasting reliability.
- Power Box sold separately.
- Designed, engineered and built in Germany.
- Dimensions: 8.3"W (21 cm) x 1.6"D (4.2 cm) x 5.6"H (14.2 cm)
- Limited 2-year warranty (consumer use) and limited 2-year warranty (commercial use)
Includes
- Touch 3 Control Panel
- Recessed Housing for Control
- Temperature Sensor
- 5m Connecting Cable with RJ10 Plug & Housing
- 5m Connecting Cable with RJ14 & RJ10 Modular Plug
- Circuit Board
- 2 Control Panel Removal Tools
- 4 Cable Glands
- 4 Wood Screws 4 x 25 mm
- 2 Screws 4 x 40 mm
- Installation and Operation Manual
- 2-Year Limited Warranty (Consumer Use) and 2-Year Limited Warranty (Commercial Use)
Specifications
|
Model |
TOUCH 3 |
|
Display |
7" Capacitive Color Touchscreen |
|
Temperature Range (Dry Mode) |
86-194°F (30 - 90°C) |
|
Heating Time Limitation |
1 Hour |
|
Maximum Lighting Output |
100W |
|
Maximum Fan Output |
150W |
|
Digital Sensor |
194°F (90°C) |
|
Safety Temperature Limiter in Sauna |
282°F (139°C) |
|
Safety Temperature Limiter in Heater |
320°F (160°C) |
|
Housing Material |
Plastic |
|
Safety Listing |
CSA (Canadian Standards Association) |
|
Width |
8.3" (21 cm) |
|
Depth |
1.6" (4.2 cm) |
|
Height |
5.6" (14.2 cm) |
|
Mounting Depth |
1.4" (3.7 cm) |
|
Construction Material |
Plastic |
