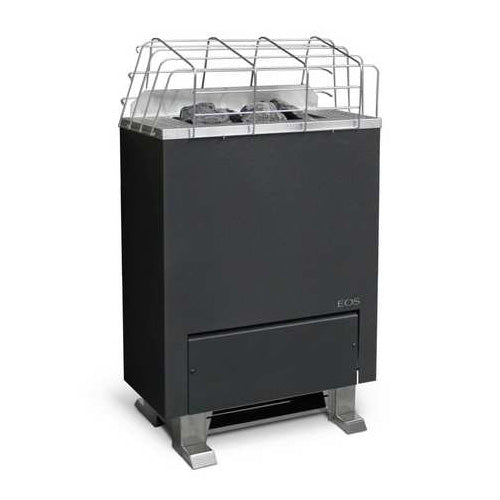

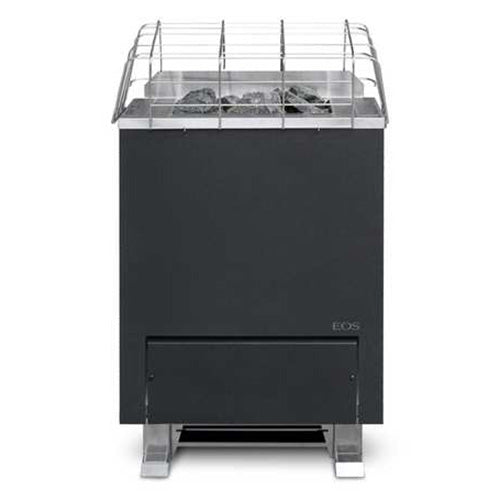

EOS Gracil (Freestanding)
Freestanding Slim-Depth Electric Sauna Heater, up to 9kW
The EOS Gracil is a designer sauna heater producing precise, smooth and uninterrupted heat within a sophisticated look and a remarkably thin footprint. Engineered for sauna rooms up to 494 cu. ft.
- 6kW - For sauna rooms from 213 to 300 cubic feet
- 7.5kW - For sauna rooms from 280 to 420 cubic feet
- 9kW - For sauna rooms from 313 to 494 cubic feet
The EOS Gracil electric sauna heater combines refined elegance with efficient performance, ideal for optimal enjoyment and an exceptional sauna experience.
The freestanding Gracil features a modern slim, geometric profile that will add a contemporary flair to your sauna environment. It is designed with a flat back and a flush-mounted terminal box, so the heater can be placed in front of glass or in tight spaces that require small safety distances.

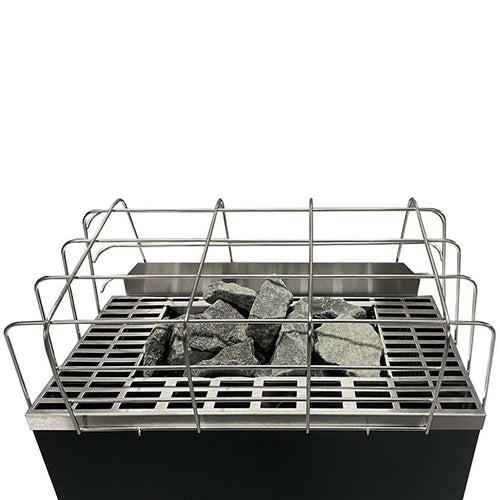

Constructed from durable stainless steel, the inner shell of the Gracil contains 44 lbs of sauna stones despite its shallow dimensions. Above the heater a brushed stainless-steel cover acts as a safety barrier during sauna sessions, with a collecting tray below accumulating dust and debris to keep your cabin spotless.
Supported by a 2-year warranty, the Gracil impresses with its artistic space-saving design and reliable heat distribution making it perfect for private sauna escapes.
Features
- Slim freestanding design ideal for small saunas where extra space is welcome.
- Steel construction throughout with an elegant stainless-steel protective stone cover.
- Sleek, straight lined body panels with flush-mounted terminal box for flexible heater placement.
- Removable dust and debris collecting tray located below the heater to keep the sauna clean.
- Designed, engineered and built in Germany.
- Compatible with Touch 3 & Emotec D controls (Sold Separately)
- Dimensions: 19.9"W (50.5 cm) x 9.8"D (25 cm) x 29.9"H (76 cm)
- Limited 2-year warranty (consumer use) and limited 2-year warranty (commercial use)
Includes
- Gracil Electric Sauna Heater
- Diabase Sauna Stones
- Protective Grill
- 2 Mounting Brackets
- 4 Particle Board Screws 5 x 35mm
- Installation and Operation Manual
- 2-Year Limited Warranty (Consumer Use) and 2-Year Limited Warranty (Commercial Use)
Specifications
|
Model |
14-947531 / 14-947985 |
|
Room Size |
213-300 cu. ft. |
|
Wattage Rating |
6000 |
|
Voltage |
208 |
|
Phase |
3 |
|
Amperage |
20 |
|
Wire Size AWG |
12 |
|
Weight |
45.2 lbs (20.5 kg) |
|
Model |
14-947534 / 14-947988 |
|
Room Size |
213-300 cu. ft. |
|
Wattage Rating |
6000 |
|
Voltage |
240 |
|
Phase |
2 |
|
Amperage |
35 |
|
Wire Size AWG |
10 |
|
Weight |
45.2 lbs (20.5 kg) |
|
Model |
14-947532 / 14-947986 |
|
Room Size |
280-420 cu. ft. |
|
Wattage Rating |
7500 |
|
Voltage |
208 |
|
Phase |
3 |
|
Amperage |
25 |
|
Wire Size AWG |
12 |
|
Weight |
46.3 lbs (21 kg) |
|
Model |
14-947535 / 14-947989 |
|
Room Size |
280-420 cu. ft. |
|
Wattage Rating |
7500 |
|
Voltage |
240 |
|
Phase |
2 |
|
Amperage |
40 |
|
Wire Size AWG |
10 |
|
Weight |
46.3 lbs (21 kg) |
|
Model |
14-947533 / 14-947987 |
|
Room Size |
313-494 cu. ft. |
|
Wattage Rating |
9000 |
|
Voltage |
208 |
|
Phase |
3 |
|
Amperage |
35 |
|
Wire Size AWG |
10 |
|
Weight |
47.4 lbs (21.5 kg) |
|
Model |
14-947536 / 14-947990 |
|
Room Size |
313-494 cu. ft. |
|
Wattage Rating |
9000 |
|
Voltage |
240 |
|
Phase |
2 |
|
Amperage |
50 |
|
Wire Size AWG |
8 |
|
Weight |
47.4 lbs (21.5 kg) |
|
Model |
GRACIL |
|
Room Size |
213-494 cu. ft. |
|
Depth |
9.8" (25 cm) |
|
Height |
29.9" (76 cm) |
|
Width |
19.9" (50.5 cm) |
|
Stone Size |
2" to 4" (5-10 cm) |
|
Circuit Breaker |
See Installation and Operation Manual |
|
Stone Capacity |
33 lbs (15 kg) |
|
Safety Listing |
CSA (Canadian Standards Association) |
|
Minimum Ceiling Height |
74.8" (190 cm) |
|
Safety Distance (Front to Back) |
14.6" (37 cm) |
|
Safety Distance (Left to Right) |
24.6" (62.5 cm) |
Shipping
About This Delivery: This sauna heater system requires a scheduled appointment. It arrives on a wooden pallet and is encased in three-ply cardboard for solid protection. The driver is responsible for “delivery only” and will provide limited assistance at the site. Prior to shipping, we may contact customers to share shipment details and needs and discuss any extenuating delivery circumstances that may complicate or cause additional delivery expenses. Our goal is to ensure your project’s success.
