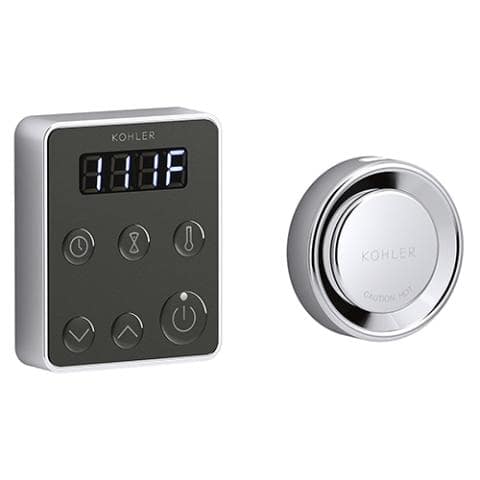

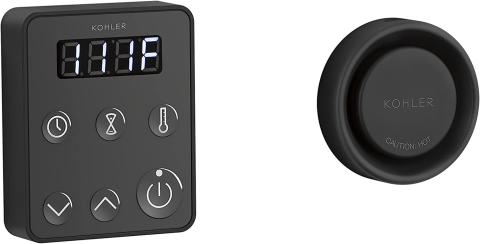

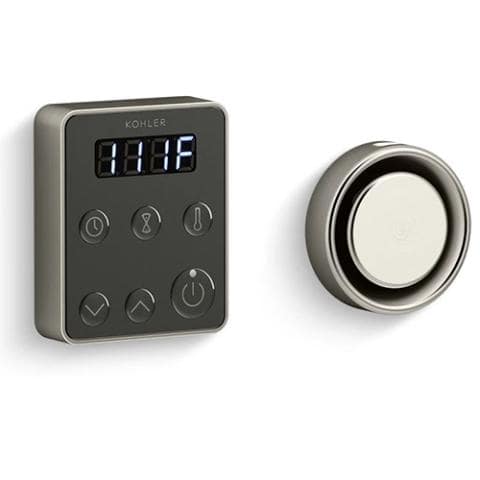

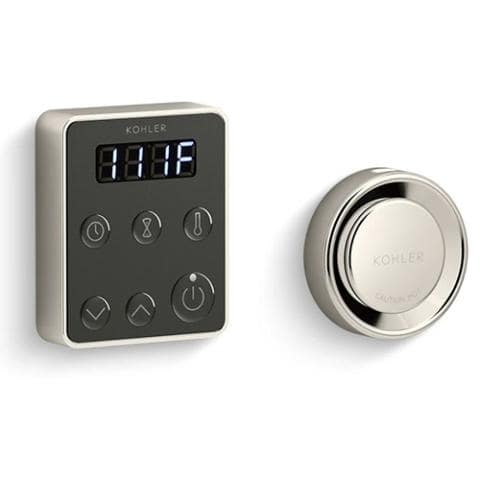

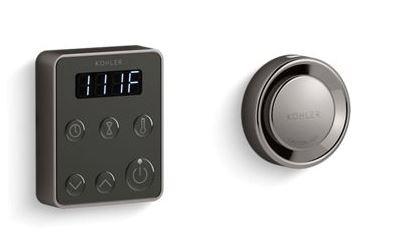

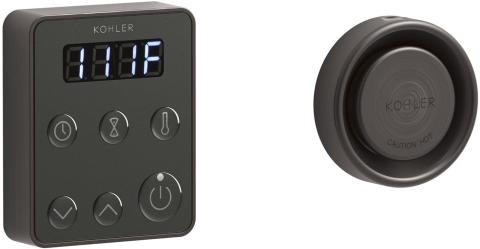

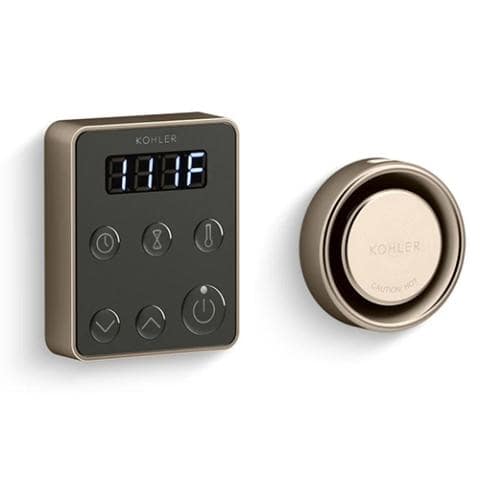

Kohler Invigoration Series Steam Generator Control Kit K-5557
The Kohler K-5557 Steam Generator Control Kit is crafted specifically for compatibility with Invigoration™ Series steam shower generators ranging from 5kW to 15kW.
In just 60 seconds, immerse yourself in relaxation. This steam generator control kit is tailored to effortlessly guide you there with the push of a button. The kit features an easily installed digital control panel, offering adjustable temperature and session settings, along with a steam head equipped with a built-in reservoir for infusing your favorite aromatherapy scents. Enhanced sensor technology ensures the steam remains at a consistent temperature.
Steam generator sold separately.
Includes:
- Control panel
- Steam head with aromatherapy reservoir
- 50' connector cable
- Coupler
- Mounting hardware
- Steam head assembly
- 5 Year Limited Warranty
Features:
- Steam head features an integral aromatherapy well for adding scents
- Circular steam head protracts from finished wall, allowing steam to evenly dispense throughout shower
- Easily adjustable control panel allows user to set temperature (90-125°F range) and steam session duration
- 20-minute safety shutoff
- For use with Invigoration™ Series 5kW - 15kW Steam Generators
- Required for use with KOHLER Invigoration® 5kW - 15kW steam generators
- Improved sensor reduces temperature fluctuations for a consistent steam shower temperature
- Digital clock
- Quick connect RJ-12 cord and connector for simplified installation and service
- Controls the Power Clean feature
- Corrosion resistant
- Tarnish resistant
- Fast-Response technology produces a luxurious steam shower in 60 seconds
- Power Clean™ technology offers one-touch automatic cleaning and safe maintenance
- Controls the Power Clean feature
- 5 Year Limited Warranty
Technical:
Installation and Operation Manual
KOHLER® Electronic Faucets, Valves, and Controls Five-Year Limited Warranty
Specifications:
| Model | K-5557 |
|---|---|
| Weight | 4 lbs |
| Control Width | 3-1/4" (76mm) |
| Control Height | 4" (101mm) |
| Control Depth | 3/4" (19mm) |
| Steam Head Diameter | 3" (76mm) |
| Steam Head Profile | 3/4" (19mm) |
