Mr. Steam Commercial CX0360 Steam Generator Package - CX0360 (0-360 Cubic Feet)

Generator Package with Integrated Control and Commercial SteamHead

The Mr.Steam CX Generator Package is next generation steam power. Ideal for larger spaces, the CX0360 is designed for steam rooms with dimensions up to 360 cubic feet (CF). The CX Generator is engineered for peak performance and features quieter power, ease of installation, and a touch-screen control. You get everything you need to create the perfect steam experience with the combination of a CX Generator, CX Control, Commercial SteamHead, Condensation Pan, and a factory installed AutoFlush System. The result is a touchpoint experience that becomes memorable, revitalizing, and ultimately more gratifying.

Features:

CX Generator

• Industrial, large diameter, serviceable heating element
• Electronic water-level control system
• Stainless steel jacket prolongs life
• Quieter than a pressurized system
• Program to preheat the steam room at the start of each day
• Internal temperature shut-off to prevent low water conditions and integral high water cut-off
• Factory installed AutoFlush System flushes old water and impurities promoting a healthy life for generators
• Compact size offers more flexibility with room design and straightforward installation
• All units are wired and pre-tested before shipping to assure all parts of the generator are working perfectly
• Designed for commercial applications that require continuous or near continuous use so they are available to use all day
• Dimensions: 33.9"L x 7.9"W x 22"H (including factory installed AutoFlush System)

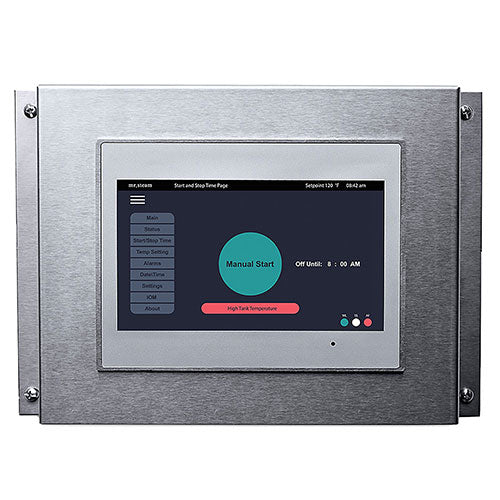

CX Control

• 7” color touch screen control with menu driven user interface
• Easily set on/off time and view system status while the unit is running
• Controls multiple CX Generators in series
• Dimensions: 7.1"L x 1.6"W x 5.3"H

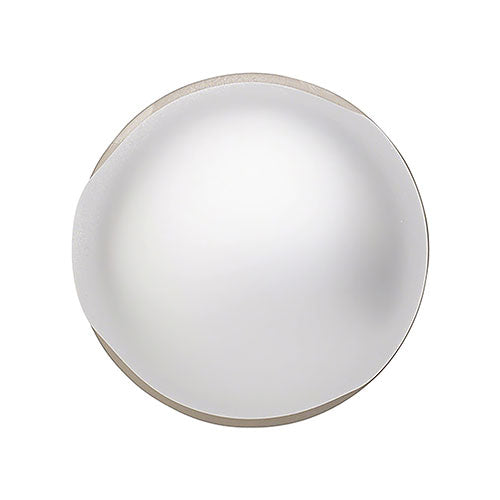

Commercial SteamHead

• Complete with polycarbonate Acrylic Shield
• Comes in a Polished Chrome finish
• No assembly of moving parts required
• Dimensions: 3.1”Diameter x 1.8”W

Condensation Pan

• Protects against potential water leaks
• Will trap and redirect the water to a predetermined area
• Goes on a solid level surface with steam generator placed inside
• Dimensions: 33"L x 1.5"W x 9"H

Includes:

CX Generator

• CX Generator
• Installation and Operation Manual
• 1-Year Limited Warranty

CX Control

• CX Control
• Installation and Operation Manual
• 1-Year Limited Warranty

Commercial SteamHead

• Commercial SteamHead
• Installation and Operation Manual
• 1-Year Limited Warranty

Condensation Pan

• Condensation Pan
• 1-Year Limited Warranty

Specifications:

Installation and Operation Manual

Technical Specification Sheet
