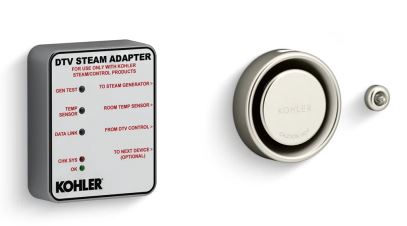

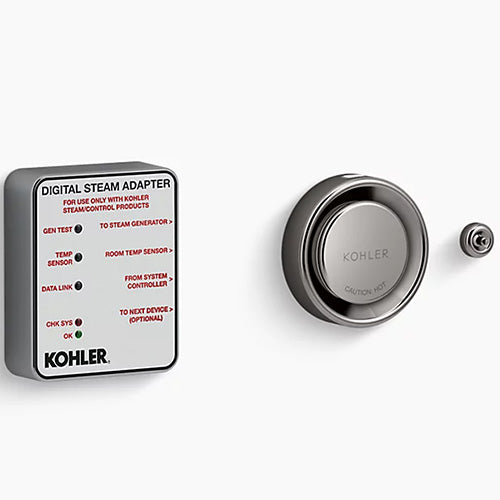

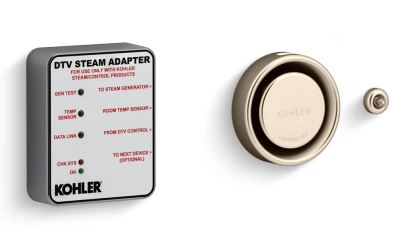

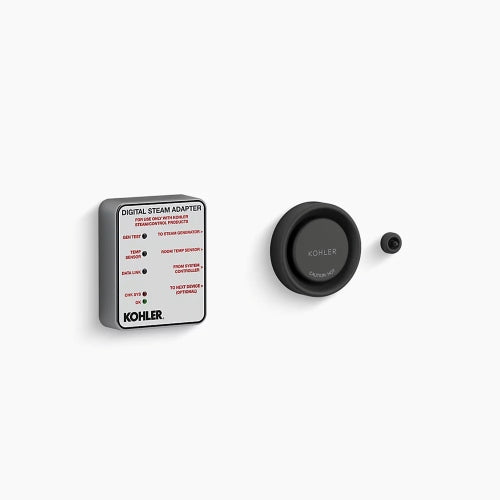

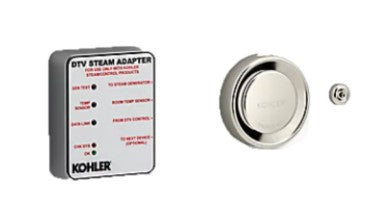

Kohler K-5548-K1
Invigoration Series Digital Steam Adapter Kit
The Kohler K-5548-K1 Steam Adapter kit enables the DTV+ and Anthem+ systems to control an Invigoration® Series steam generator, bringing steam to your steam shower space in just 60 seconds at the push of a button. The kit also includes a remote temperature sensor and a steam head with aromatherapy well, allowing you to add aromatic scents to enhance your steam experience.
Required steam generator, control, and control module sold separately.
Features:
- Allows Kohler Invigoration® Steam Generator to be controlled via the DTV+ and Anthem+ Showering Systems.
- For use with Kohler Invigoration® Steam Generators between 5 and 15 kilowatts.
- Adjustable temperature settings between 90°F and 125°F.
- Aromatherapy reservoir on steam heads.
- Circular steam head design allows steam to be evenly dispensed throughout shower.
- 20-minute safety shutoff.
- Quick-connect RJ-12 cord and connector for simplified installation and service.
- Not compatible with other manufacturers' steam generators.
- 5 Year Limited Warranty
Includes:
- Steam head
- Temperature sensor
- Adapter
- 10" Straight Cable
- 16" Crossover Cable
- 6" Straight Cable
- DTV Harness
- Dual Connector
- Gasket
- Mounting Arm
- Terminator
- Thermostor Harness
- 5 Year Limited Warranty
Specifications:
|
Model |
K-5548-K1 |
|
Mount |
Wall |
|
Steam Generator Power Range |
5-15 kW |
|
Temperature Range |
90°-125°F (32°-52°C) |
|
Adapter Dimensions |
3.3"W (8.3 cm) x 0.8"D (1.9 cm) x 4"H (10.2 cm) |
|
Steam Head Dimensions |
3" Diameter (7.6 cm) x 0.8" (1.9 cm) |
|
Temperature Sensor Dimensions |
0.7" Diameter (1.7 cm) |
Technical:
Kohler K-5548 Installation and Operation Manual
Kohler K-5548-K1 Specification Sheet
